KGSM-E84 Wireless Environment Monitoring and Warning System

KGSM-E84 wireless environment monitoring and warning system can detect fire, smoke, gas (methane, Propane, O2, NOx etc.), temperature, humidity etc. in one or more environments via GSM / GPRS infrastructure. It is a system developed by ULUTEK TEKNOKENT's expert electronics and software engineers to evaluate the information it receives from its sensors or alarm inputs, and to give a warning via SMS in case of exceeding the previously defined limit values.

It is critical to obtain healthy results in studies conducted in areas such as laboratories, to keep the storage conditions of the materials used stable, and to monitor temperature and humidity due to similar criteria. If the ambient temperature changes due to events occurring during or outside working hours, stored samples may deteriorate. Thanks to the KGSM-E84 wireless environment monitoring and warning system, timely intervention and necessary precautions can be taken. It also provides protection of medical devices against network fluctuations. Electrical devices can also be controlled remotely with the KGSM-E84.

KGSM-E84 is a GSM-based warning, information and control system developed to receive data from points where wired connection is not available or unsafe, to alert mobile phones via SMS and call in case of alarms, or to control them when necessary.
The device evaluates the information it receives from the sensors on it and sends an SMS alert to a desired GSM number in case it exceeds the predetermined lower and upper limits, and then makes a call. In addition, the devices connected to the contact outputs on the device (Heating, Cooling system, etc.) can be started or stopped by SMS.

Installation and Settings

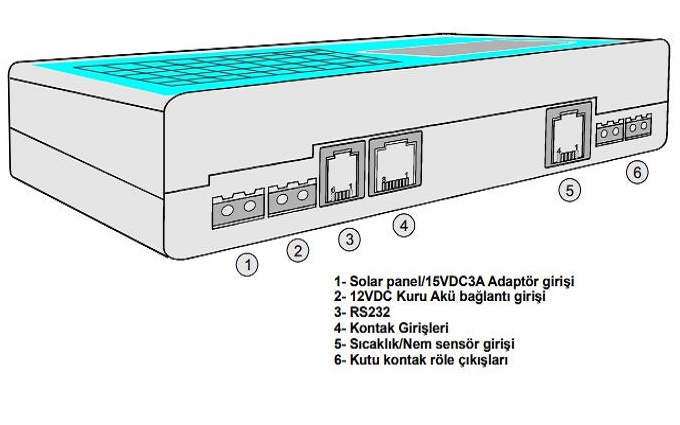

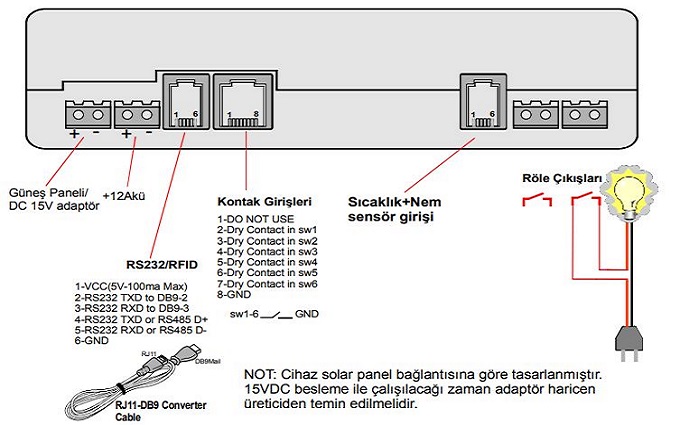

Depending on the device model, there are connection outputs such as temperature, humidity, gas. Connections for KGSM-E84-10 are shown on the side picture.

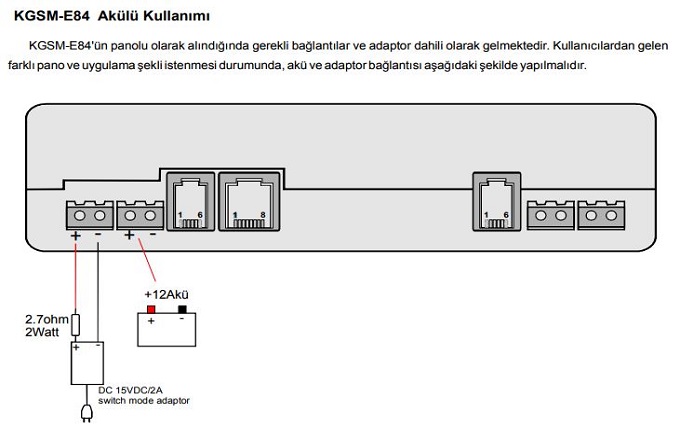

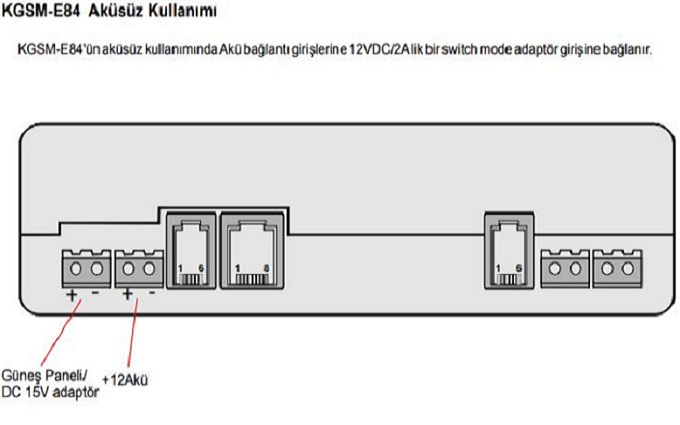

A SIM card whose PIN code entry is canceled must be inserted into the SIM card slot of the device. The battery must be connected to the number one terminals with the correct polarity. The polarity of the solar panel/adapter input number two must be connected in the correct direction. After the other sensor and contact inputs are completed, the adapter input or battery connection of the device should be completed and the device should be fed.

The device tries to integrate into the GSM network during the feeding. This process will take about 10-60 seconds depending on the location. During the connection to the GSM network, the device functions are turned off, no entry can be made.

When the device completes the GSM integration, it will return to the logo screen.

Factory Settings and Forgotten Password
When the device is used for the first time, its settings will be assigned. These settings are password 0000, the GSM number to be sent is undefined, sensor limit values are 0.0, all digital inputs are passive, all outputs are off, in case of alarm the call is cancelled.

If the password is forgotten, it must be reset to return to the factory setting on the device. The KGSM-E84 is disconnected from the wall socket and, if connected, from the battery connection, and plugged into the KGSM-E84 wall socket by pressing the "0" button. Then the password screen is displayed. This password must be requested from the manufacturer according to the serial number of the product. After entering the password, the device returns to its factory settings.

Factory settings;

PSW: 0000
GSM number: 00000000. So undefined.
Sx : Tlow=0,Thigh=0,Hlow=0,HHigh=0
SWx : All digital inputs are passive, so they cannot send SMS when 12V input is given to these inputs.
Rx : All outputs are OFF
Call in alarm status: off
After the device is reset to factory settings, 0000,gsm1=053xxxxxxxx should be sent first. The device sends a message that it accepts GSM within 30 seconds. After that, the password can be changed.
