Poultry Development and Tracking Alert System
The Poultry Development Tracking and Warning System monitors the development of the poultry house by making measurements while the poultry are walking on the platform at the ground level.
Usage Areas
Broiler houses
Breeding Houses
Turkey Coops
Key Features
- Measurement with 1 gram precision,
- Average weight and development graphs of the house,
- The temperature and humidity density of the house,

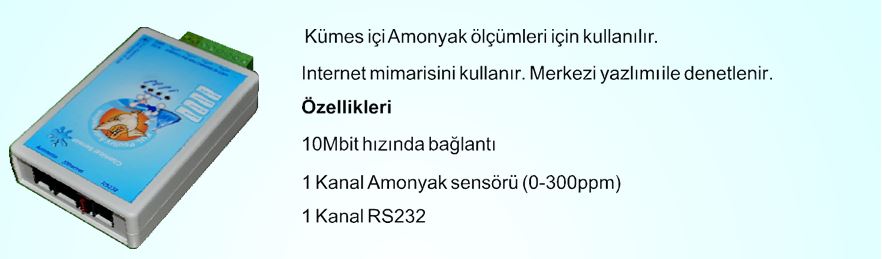

- Ammonia measurement of the house (optional),
- Measurement with time program,
- 16 million color TFT touch screen (optional),
- monographic LCD,
- Frame camera connection,
- Producing guiding sounds for poultry,
- Minimum 10 years of recording with 32GB memory support,
- Built-in real time clock
- Central monitoring with 100Megabit internet connection,
- Ability to send an e-mail to the manufacturer (with an interval of 1 hour),

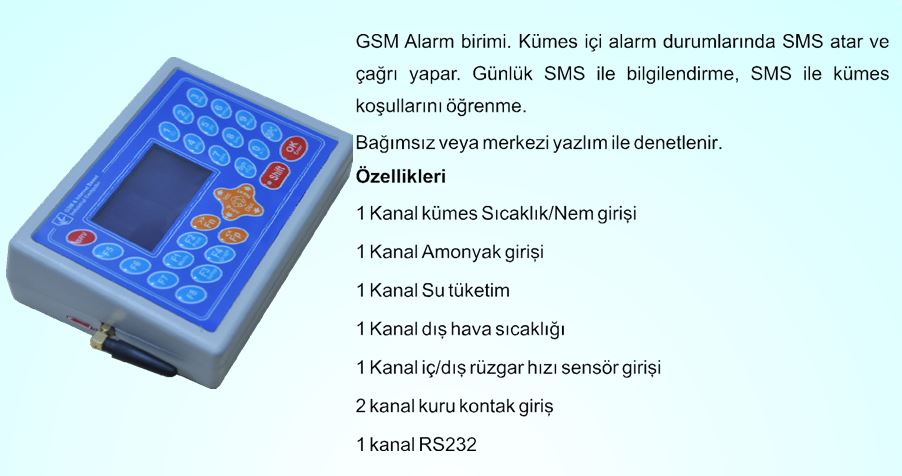

- Connection to SMS Alarm unit (total 5 GSM to caregiver, manufacturer),
- Password controlled operations,
- Ability to operate outputs according to sensor status,
- Power: 6Watt maximum, 0.96Watt minimum,
- Color: Gray (ABS).
Poultry Development and Tracking Alert System
The Poultry Development Tracking and Warning System monitors the development of the poultry house by making measurements while the poultry are walking on the platform at the ground level. At the same time, it informs the computing unit about the status of the cluster. Chemical sensors (ammonia, CO₂) located 60 cm above the ground level also monitor and record temperature and humidity level measurements in real time and give an alarm when necessary.
The poultry indicator consists of the platform on which the poultry roam and an optional remote monitoring and reporting system.
Poultry growth tracking system components:

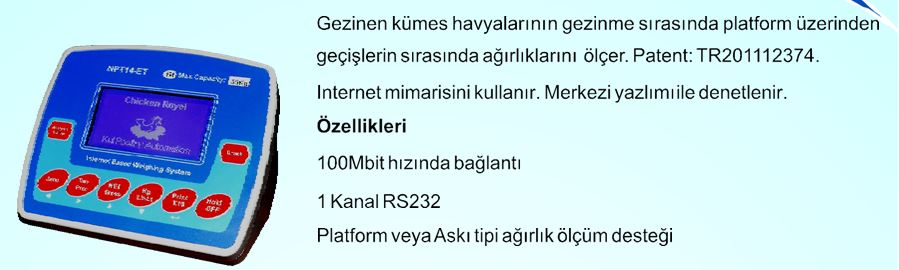

• House Indicator
• Remote Monitoring and Reporting System
• Platform

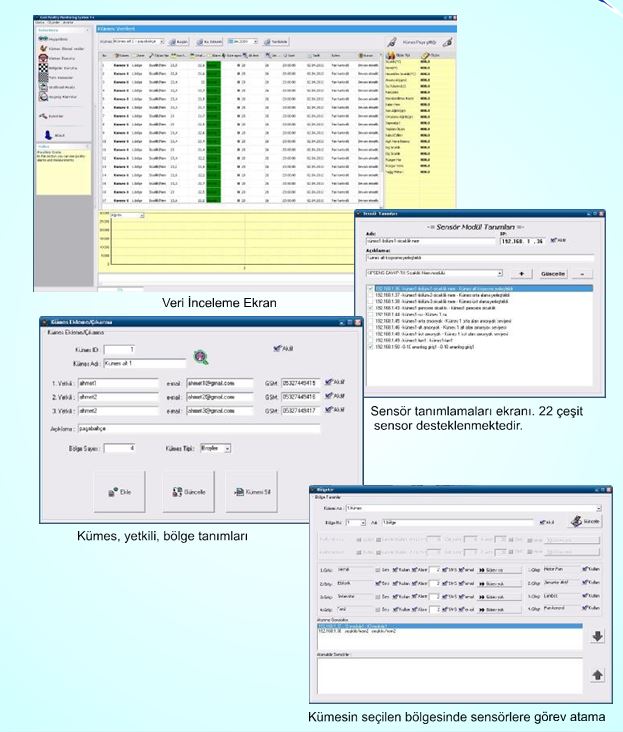

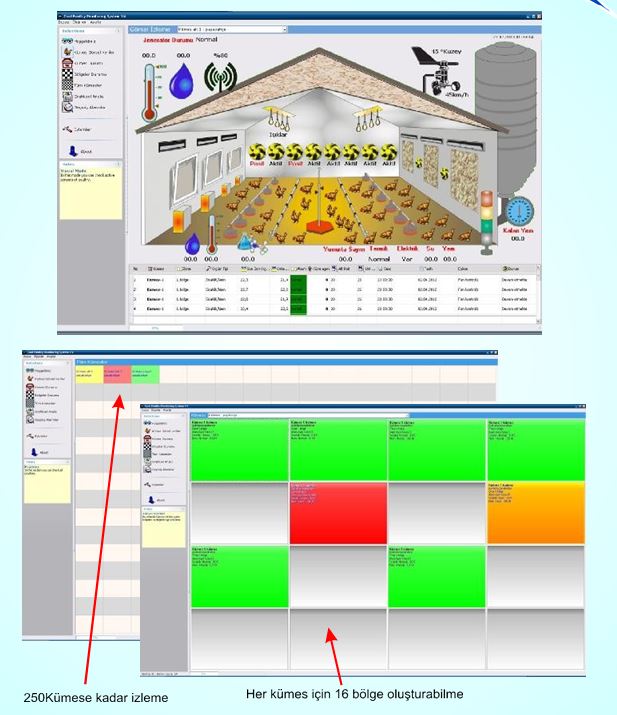

Remote Monitoring and Reporting System
The poultry indicator records all measurements in hours, minutes and seconds in the flash memory within it. Reports are transferred with flash memory in the houses that cannot be connected to the remote monitoring system. The remote monitoring system is not mandatory. The farmer transfers the (encrypted) data in this flash memory to the producer at the delivery of the poultry.
The remote monitoring and reporting system allows both the producer and the breeder to monitor and report the development status in the henhouse.
Features:
Remote monitoring of up to 500 poultry house indicators,
All reports, graphics,
Determining the performance of the breeder by accessing the records of the past periods,
Notification in case of alarm,
Early cut reminder.
Platform
It is the measuring platform on which the poultry roam.
Features:
15-50Kg load cell,
oscillating measuring plane at ground level,
Ceiling screwed or suspended fixture.
